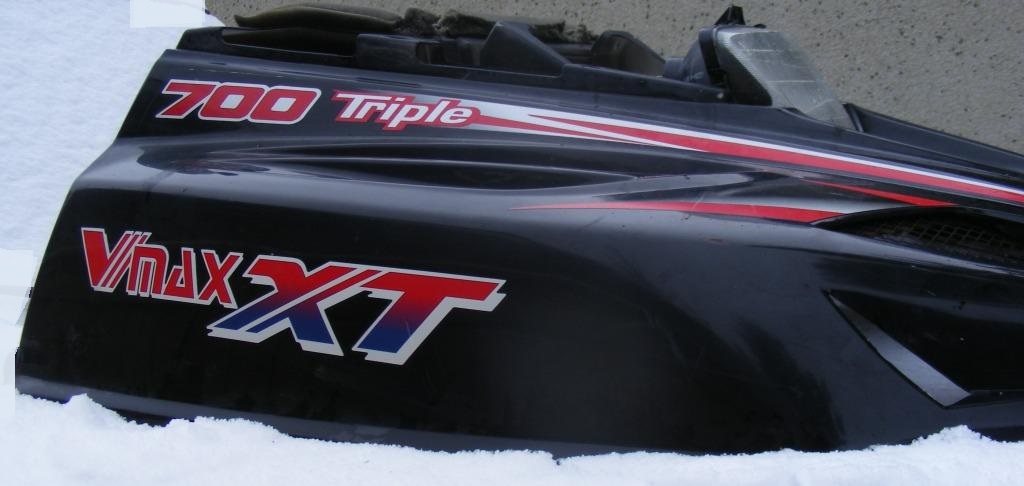

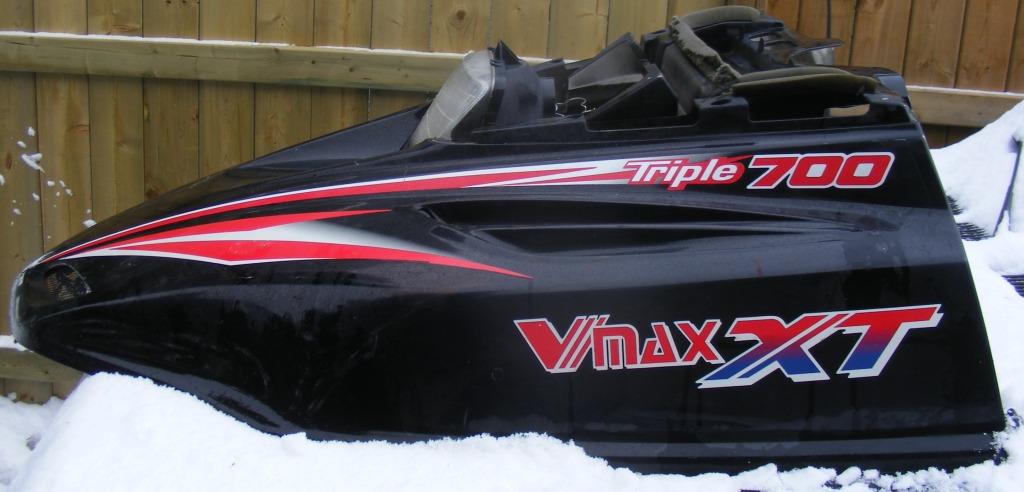

YAMAHA Triple 700
VMax PARTS SLED
Purchased May 2016
-
We
salvaged this RED HEAD Triple
for our
Blue Max Project.
-
The Shocks (3
out of 4) were used
-
The nice 121
x 1.5 track was shelved until
This
SXT
project
came along.
|
|
The Good...
Sometimes you have to ask yourself
"Did
I get lucky?"

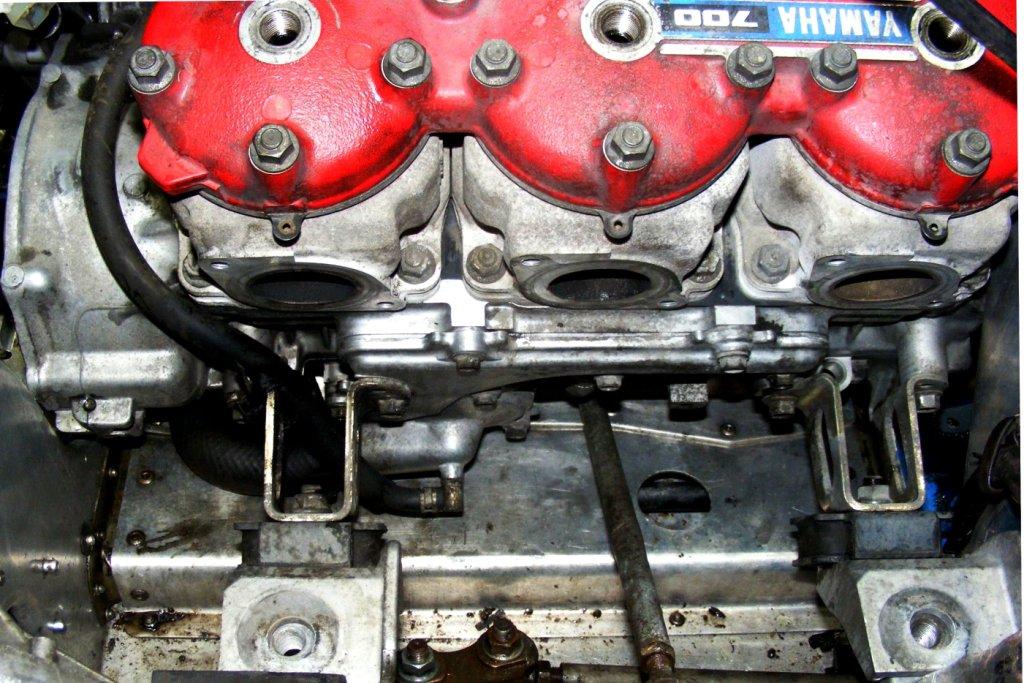

We use this engine in this
Blue Max Project.
|

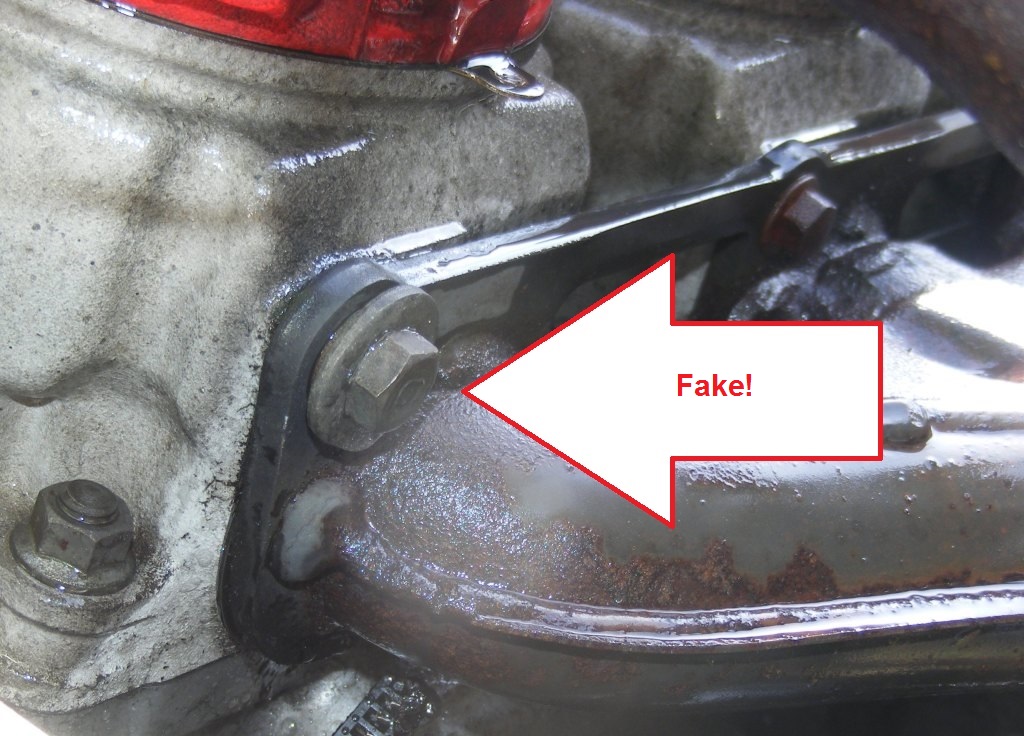

Manifold bolt replaced by domestic STD |

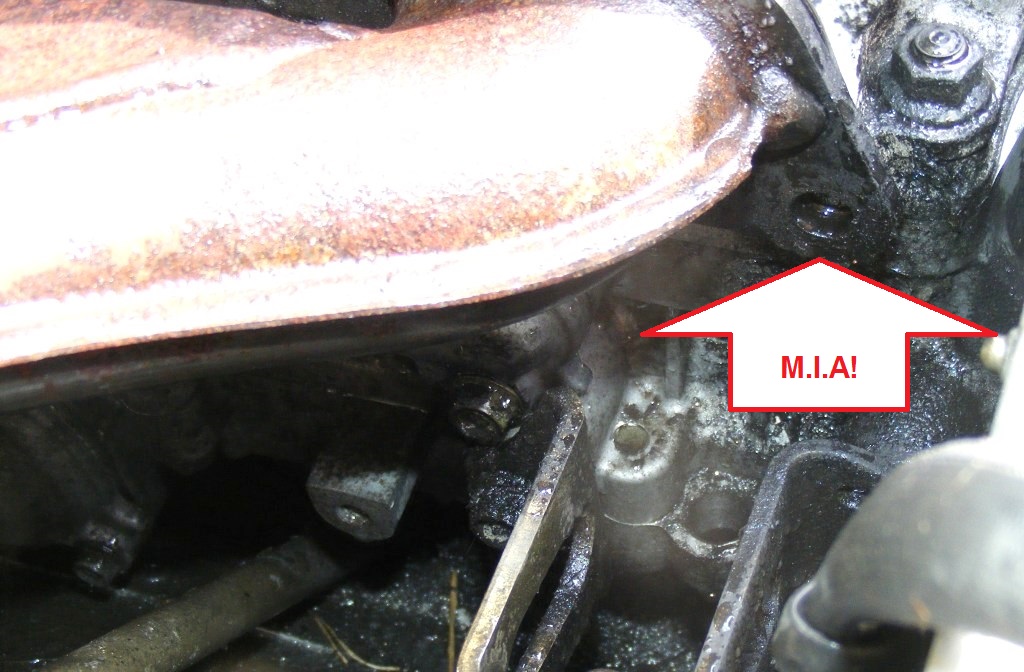

Manifold bolt
missing, at least I don't have to Helicoil this hole
back to metric threads. |
This engine in action
18-01V
And one of the videos below
Yourstruly
180106V
|
|
...the Bad
Sometimes you have to ask yourself
"Did
I get lucky somehow again?"
...and the Ugly

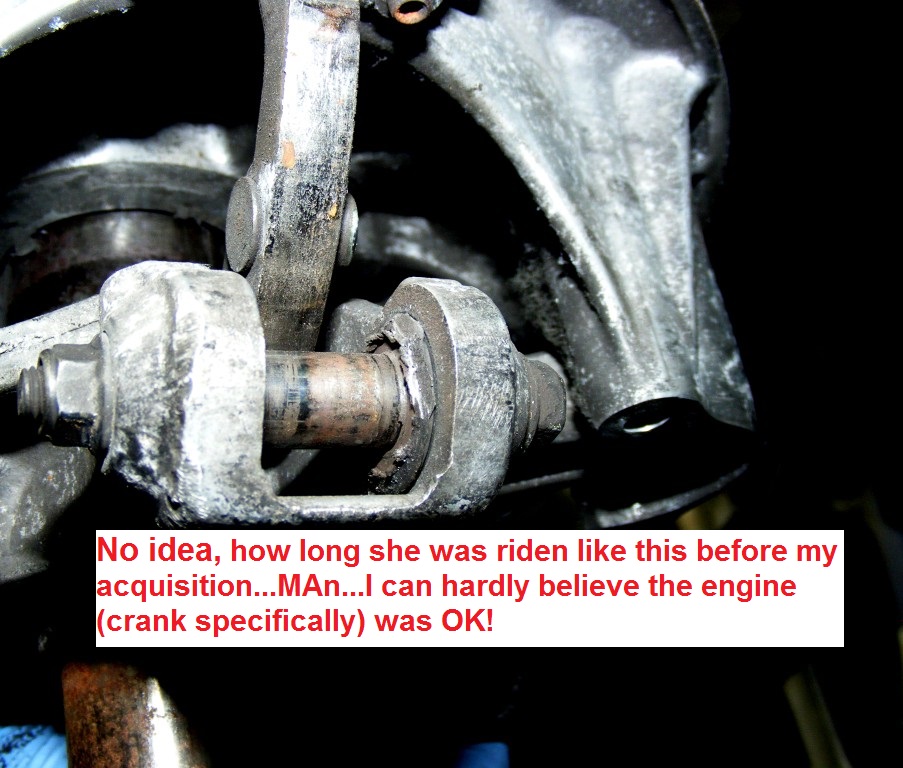

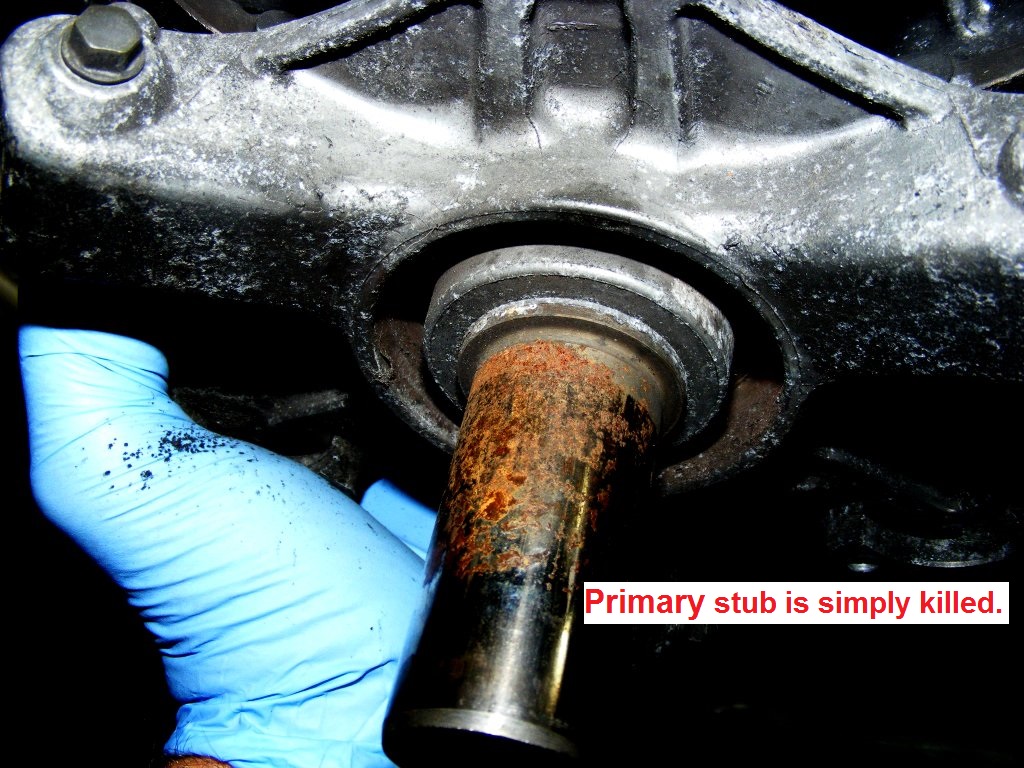

Sometimes you have to ask yourself
"WHat
is this MAn??"
I salvaged the track from
this parts sled,
and used it
Here!
|
of |
|

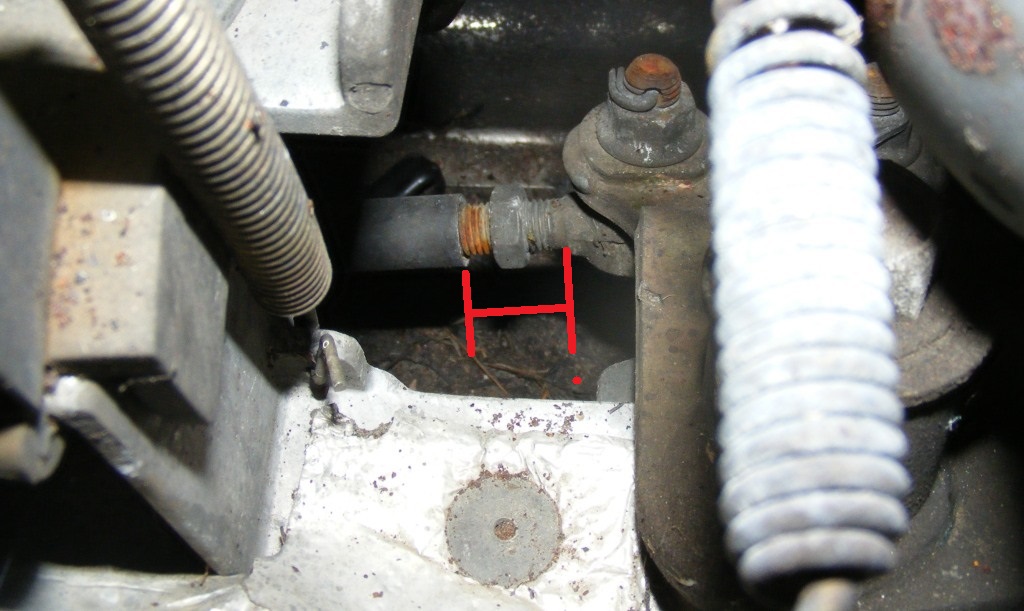

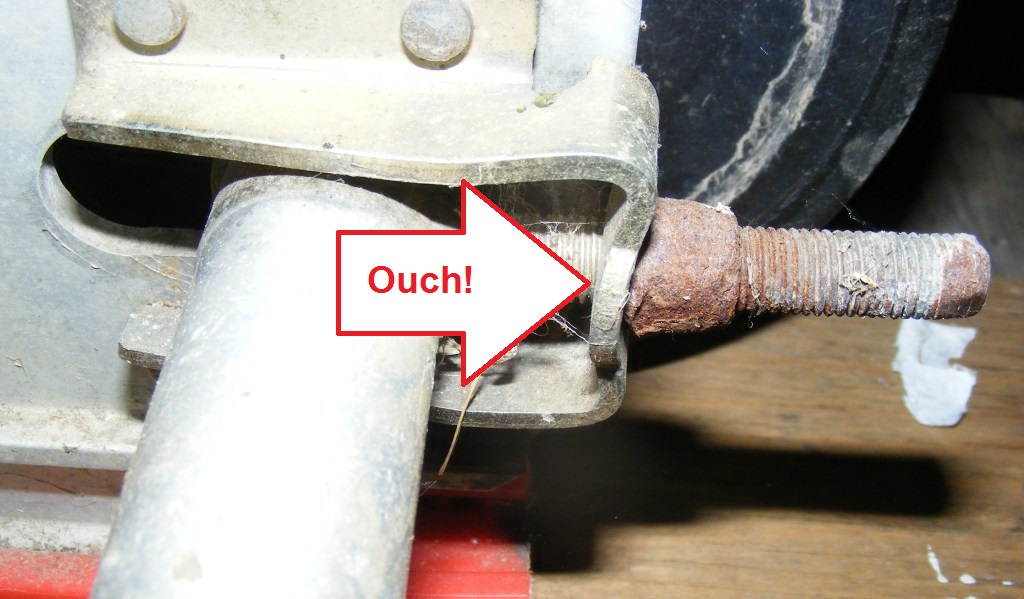

The Right outer tie rod end couldn't
be
turned out any further. |
|

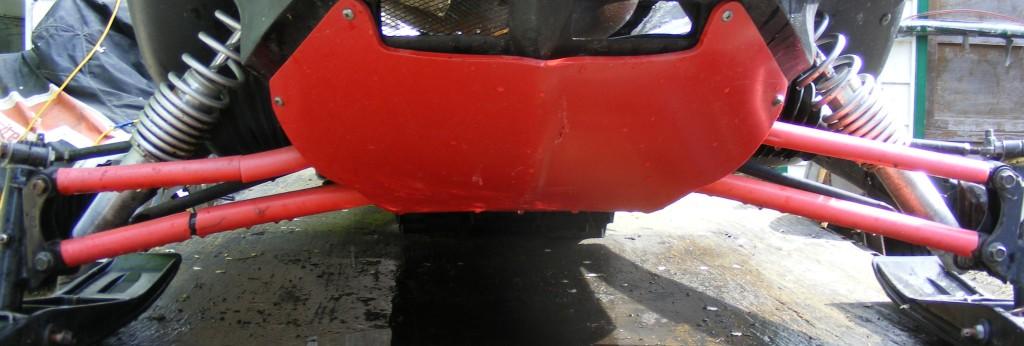

The Left inner tie rod is loose and all the way out.
|

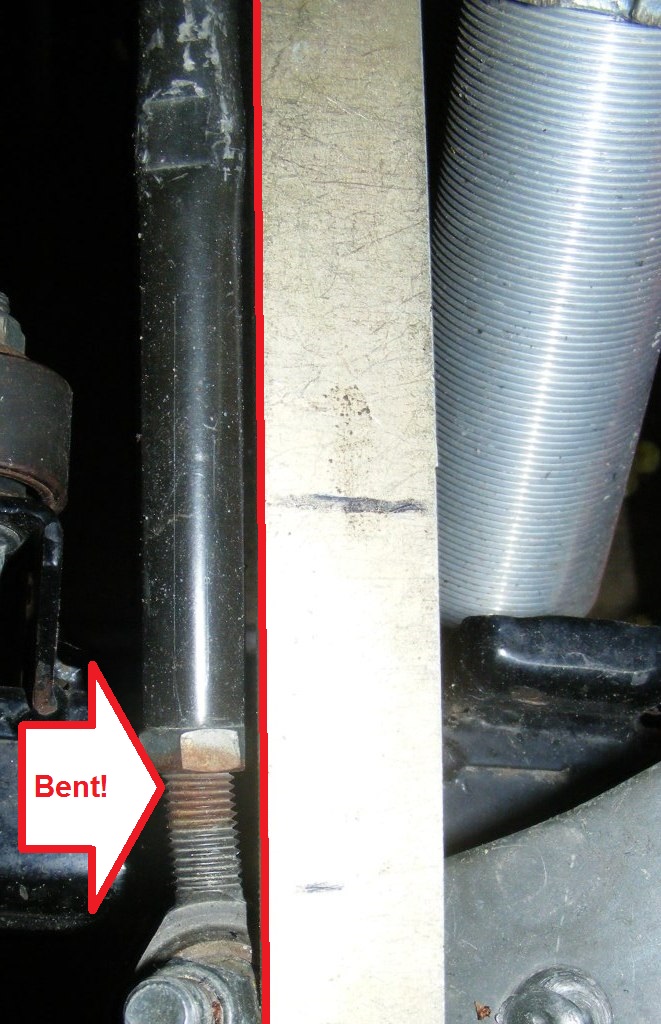

Loose, bent
and all the way out. |

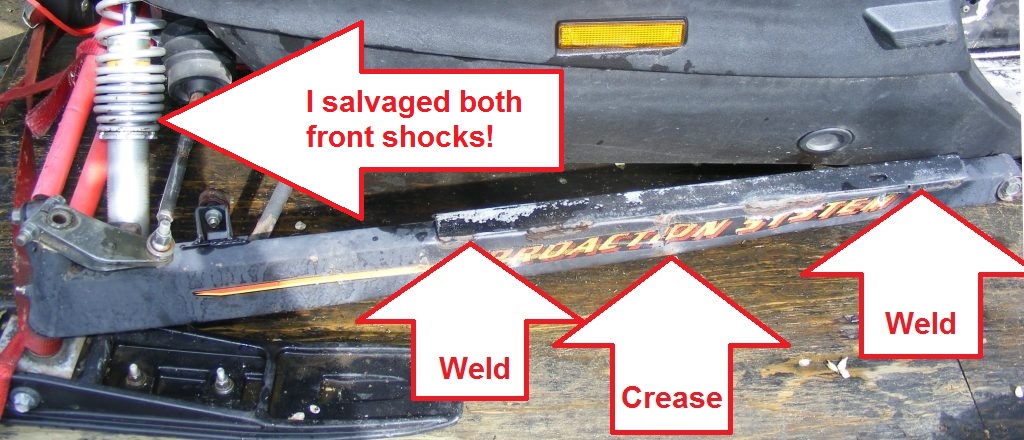

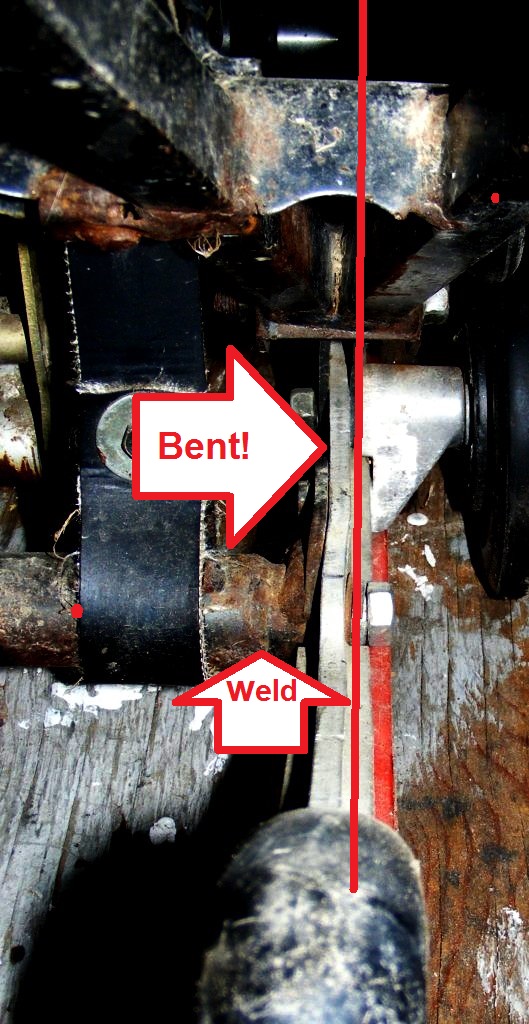

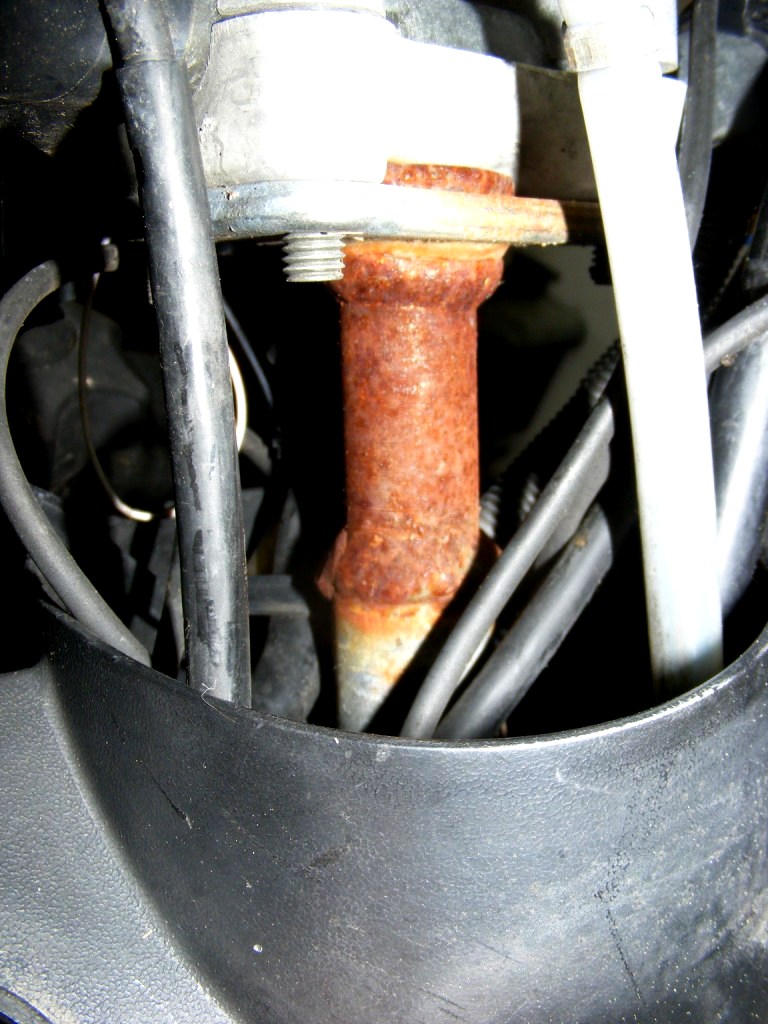

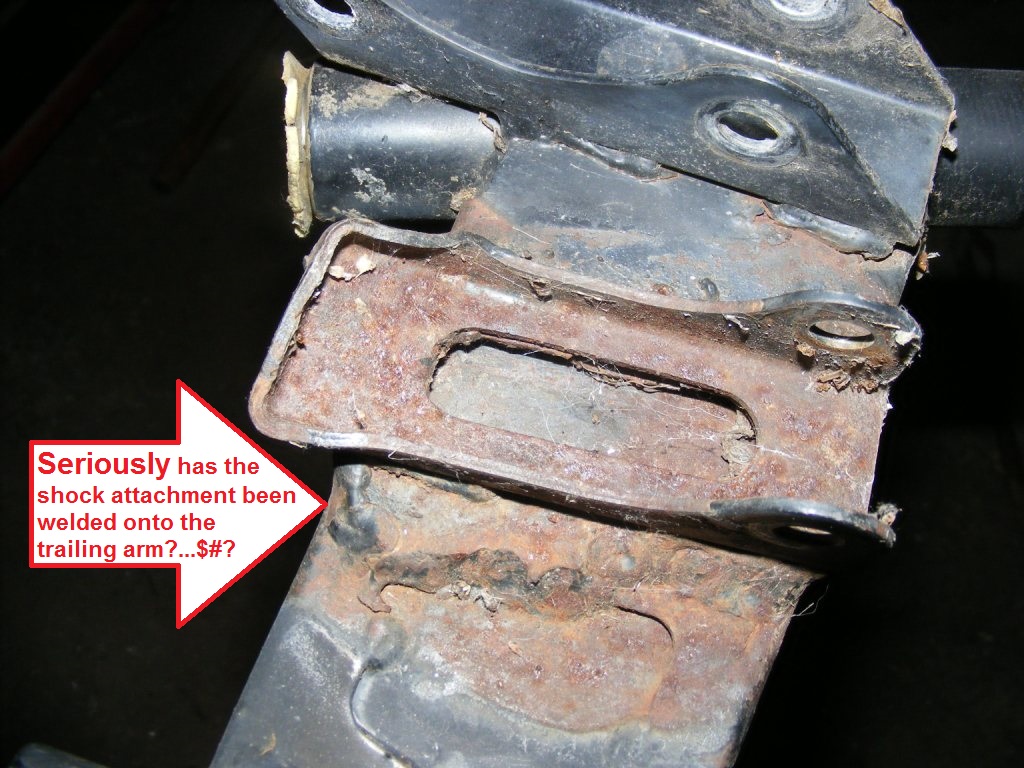

Welded
|
Bent |
|
of |
|
Welded |
Welded
|

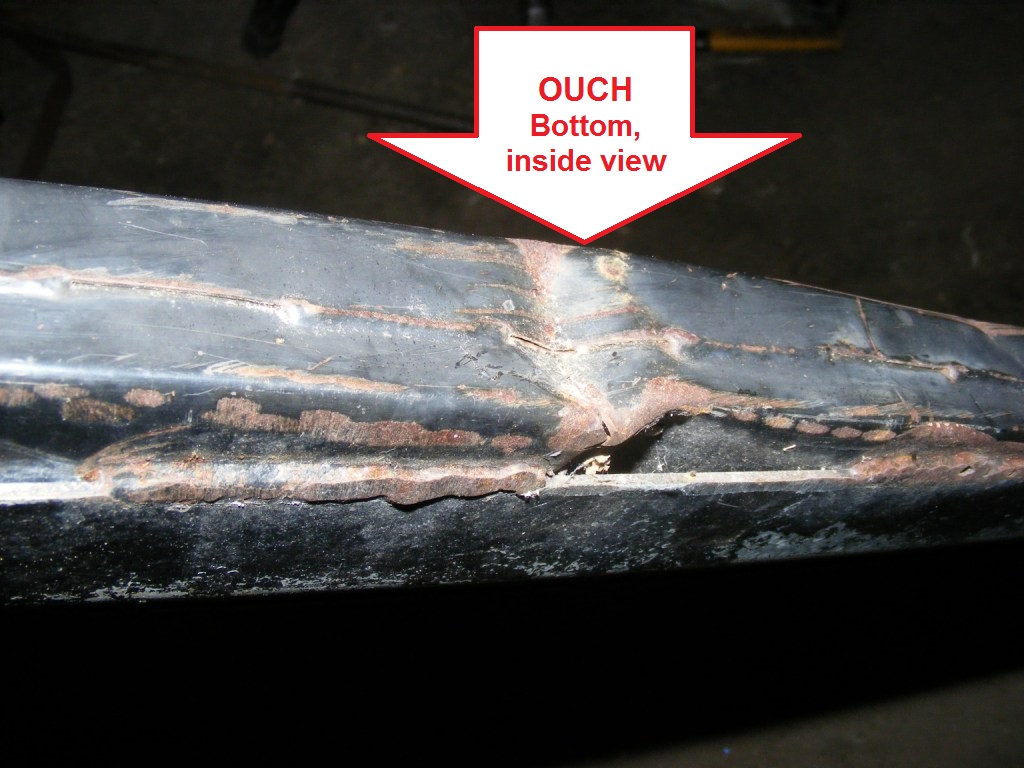

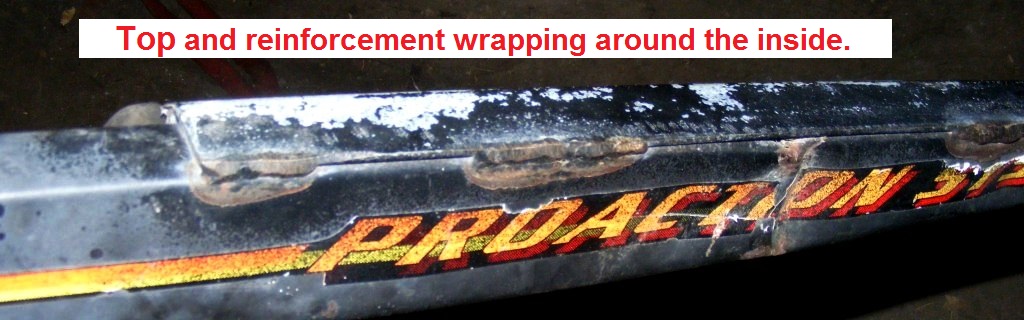

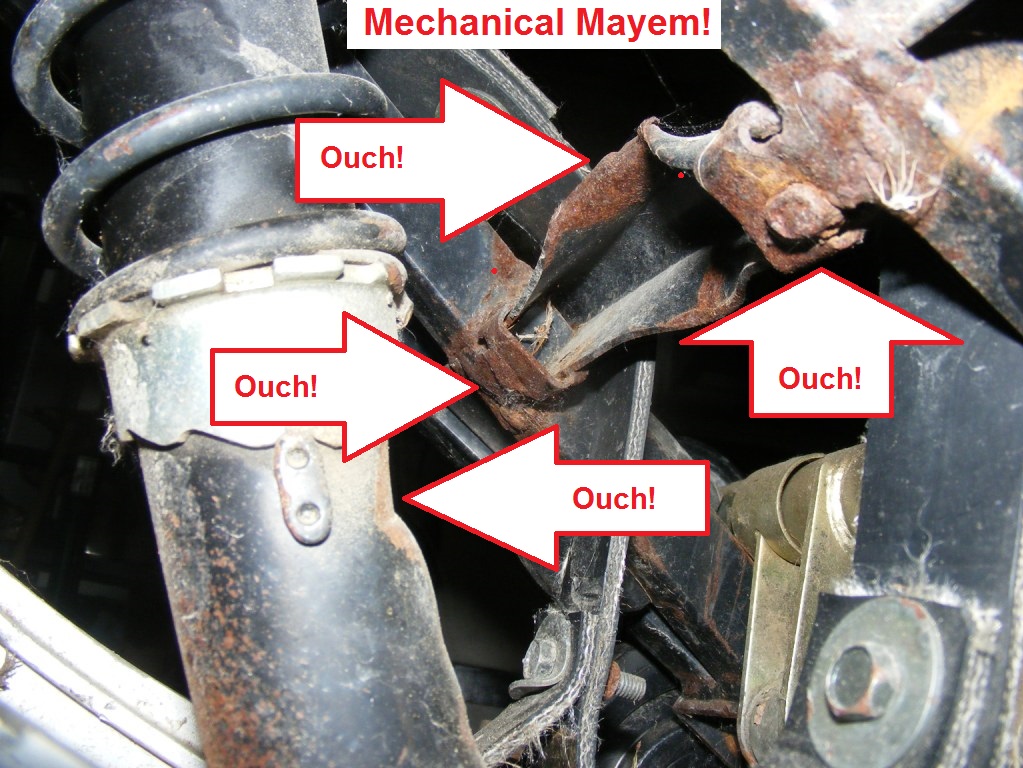

Bent, welded,
rusted, kinked, reinforced, ...........!
|
|
of
|
 |
of
|
|
Right rear track
adjuster "bolted on where it would of been riveted on?"
|

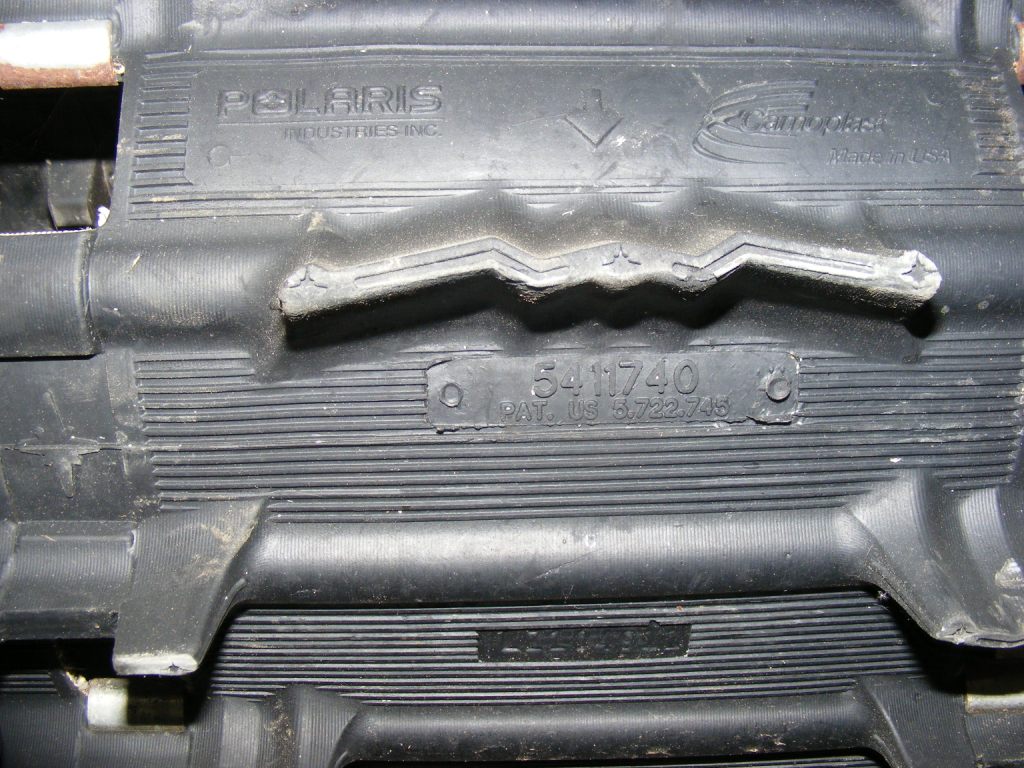

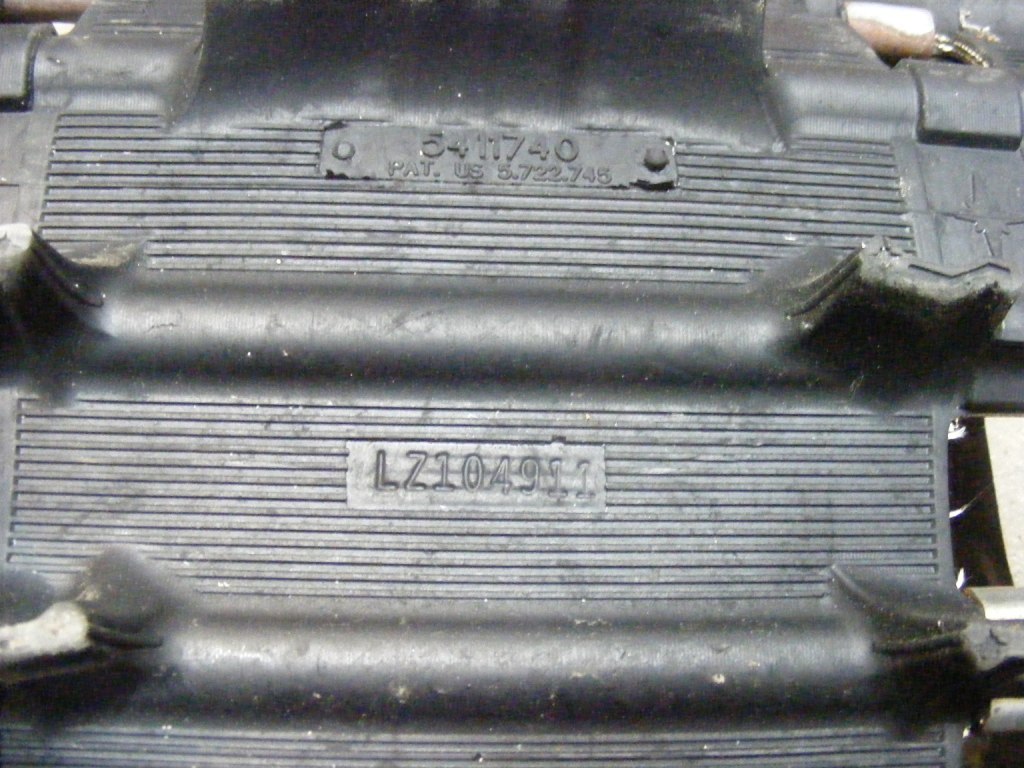

I had this Camoplast/Polaris
#5411740 handy. It eventually used on our
SXT
project.
|
 |
|

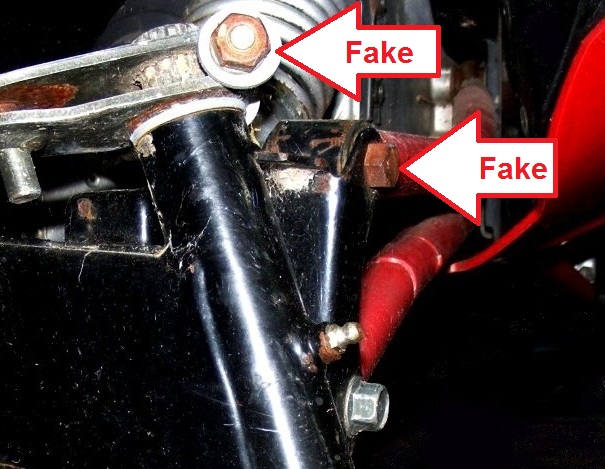

Fake |

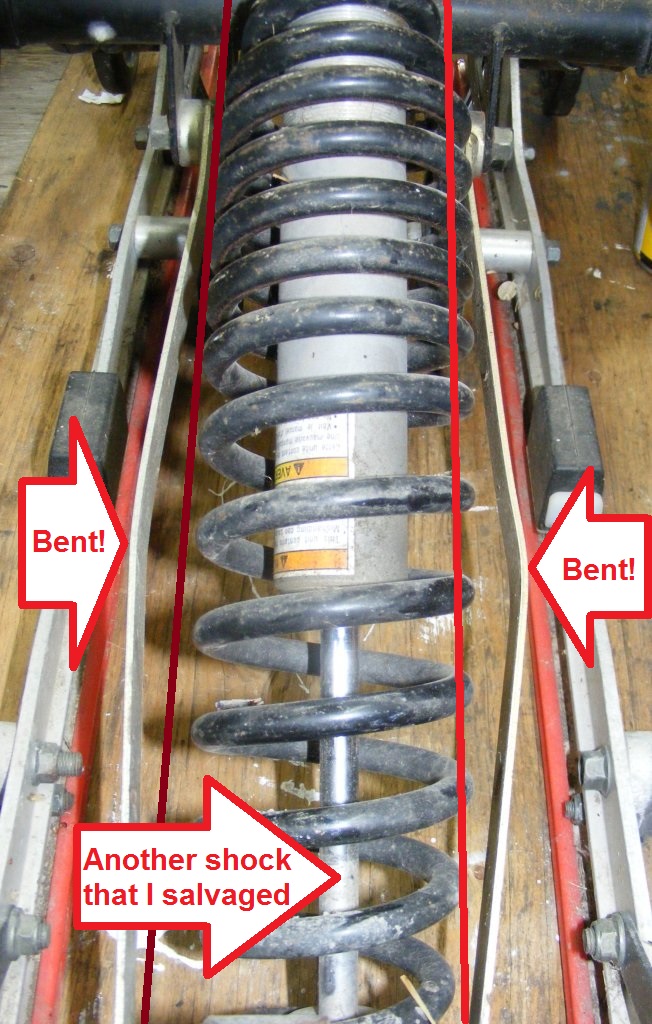

This shock absorber was salvaged but
absolutely everything around it was junked!
|

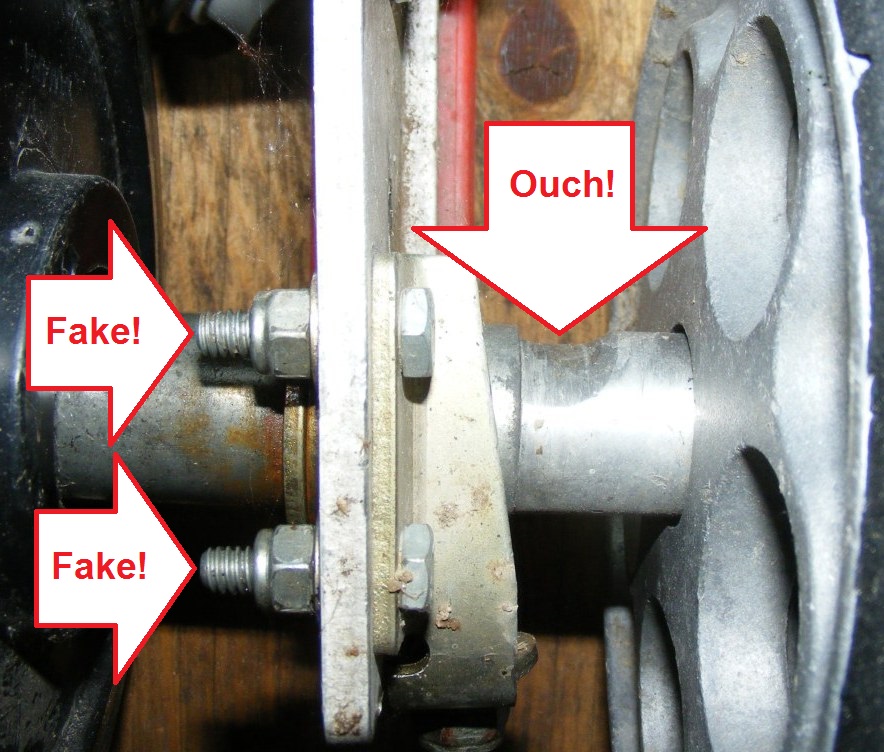

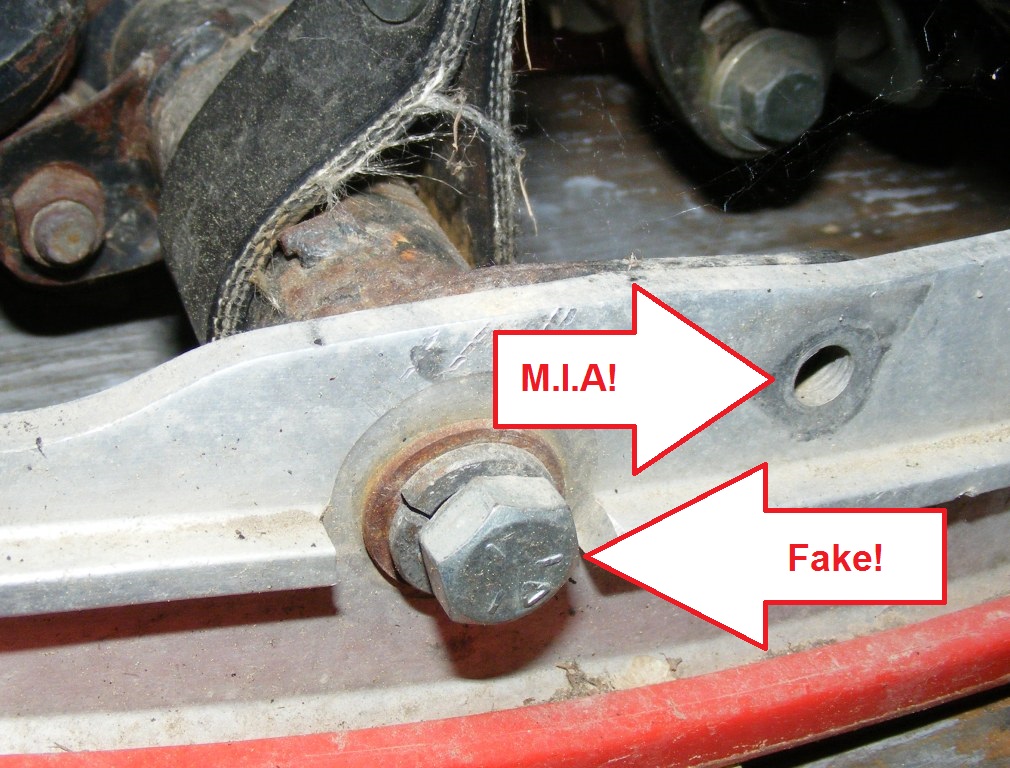

M.I.A., and fake! |
|

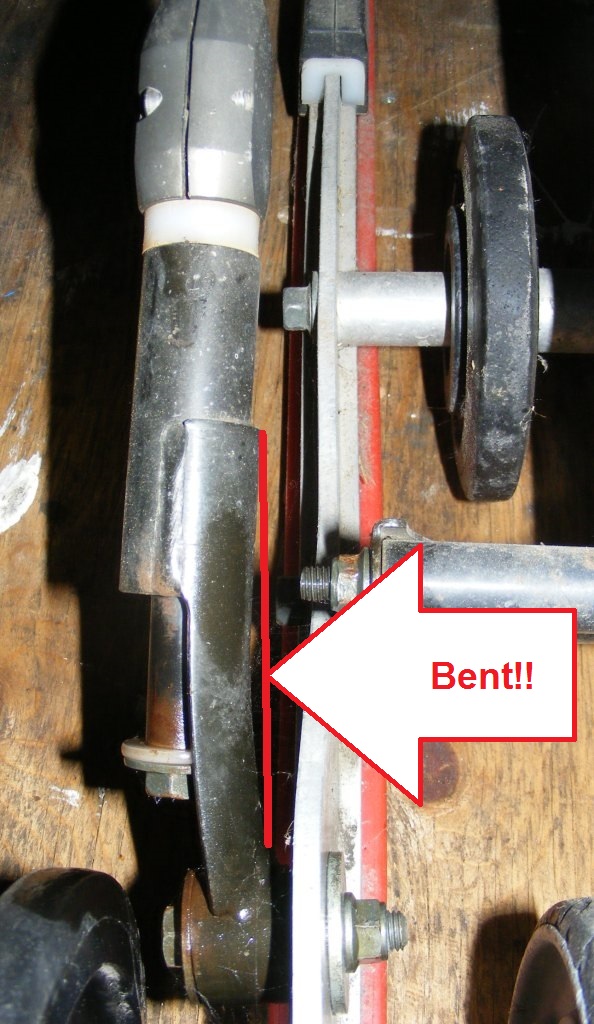

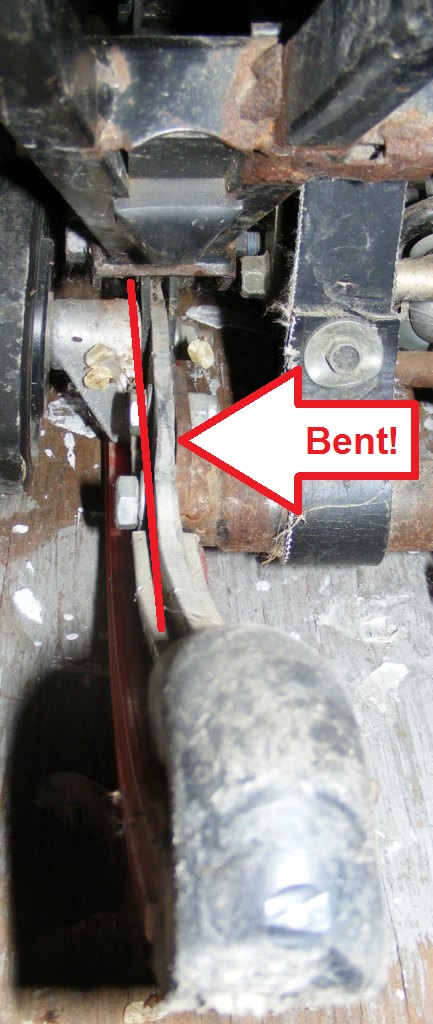

Bent
|

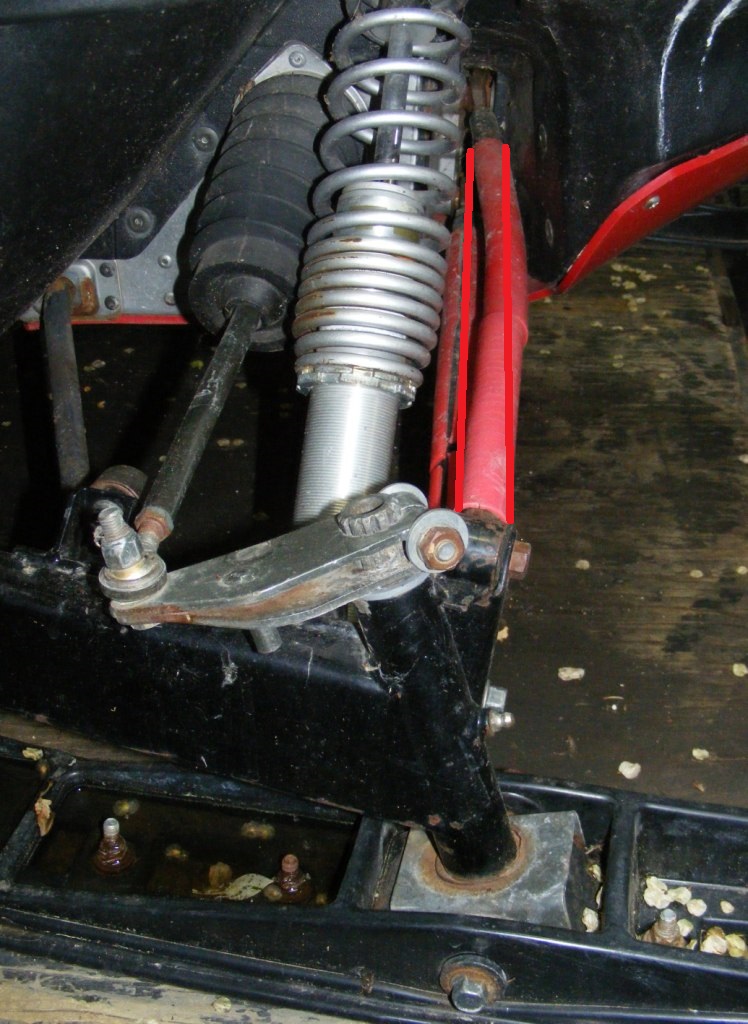

This the front skid
frame shock. It was not salvageable. Everything around
it was bent or crushed. |
Bent |
|
|
This track in action
18-06VF
And one of the
videos below
Yourstruly
180616V
 |
|
|
|
Sometimes you have to ask
yourself
|

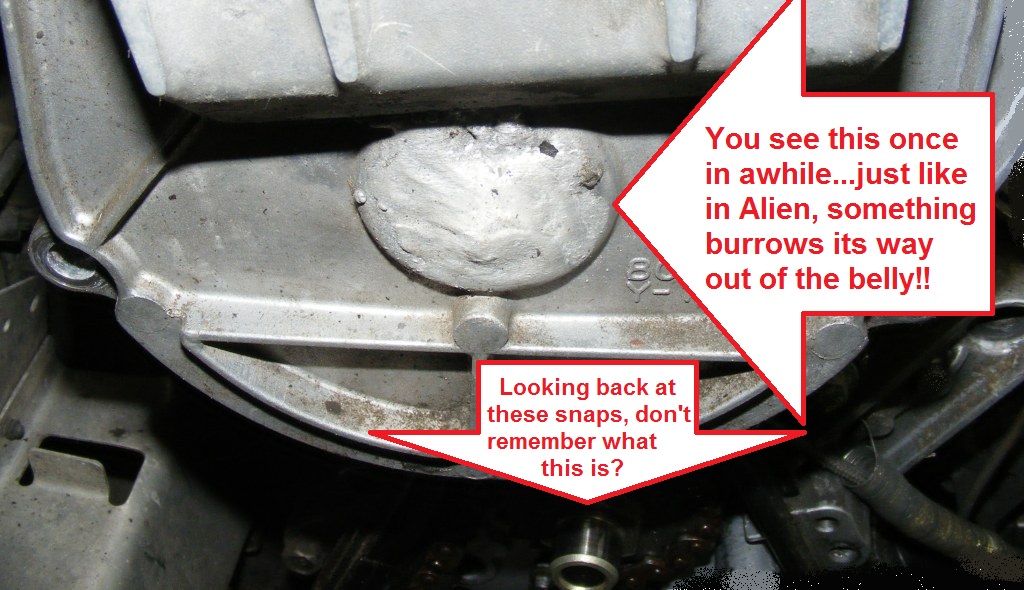

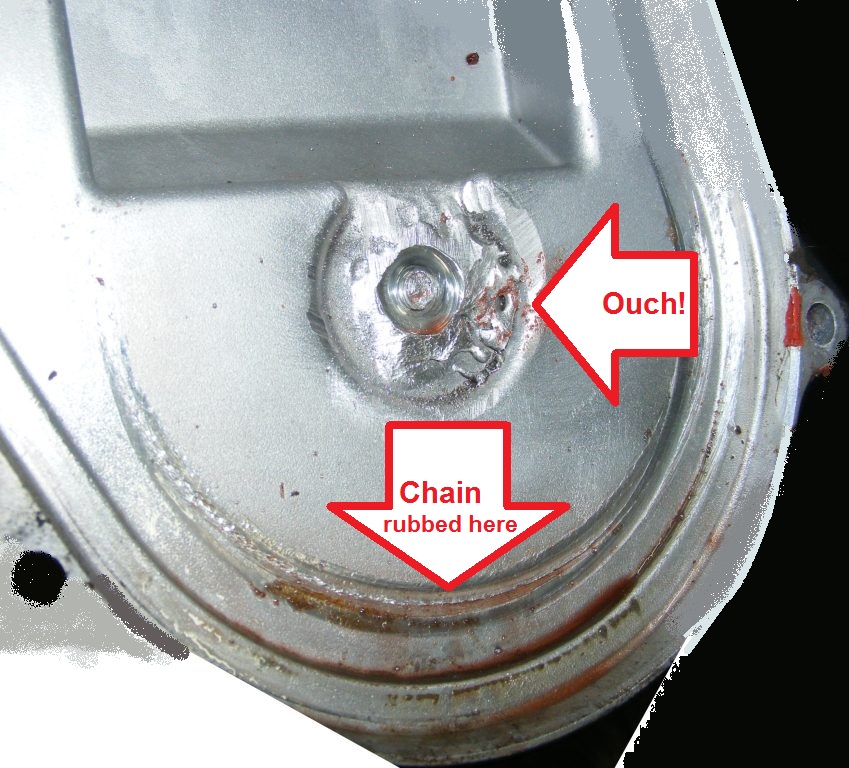

Evidence of some welding to rebuild
the cover damaged from loose internals floating around.
|
I have found this
same bolt off in an OEM application...shit happens. |

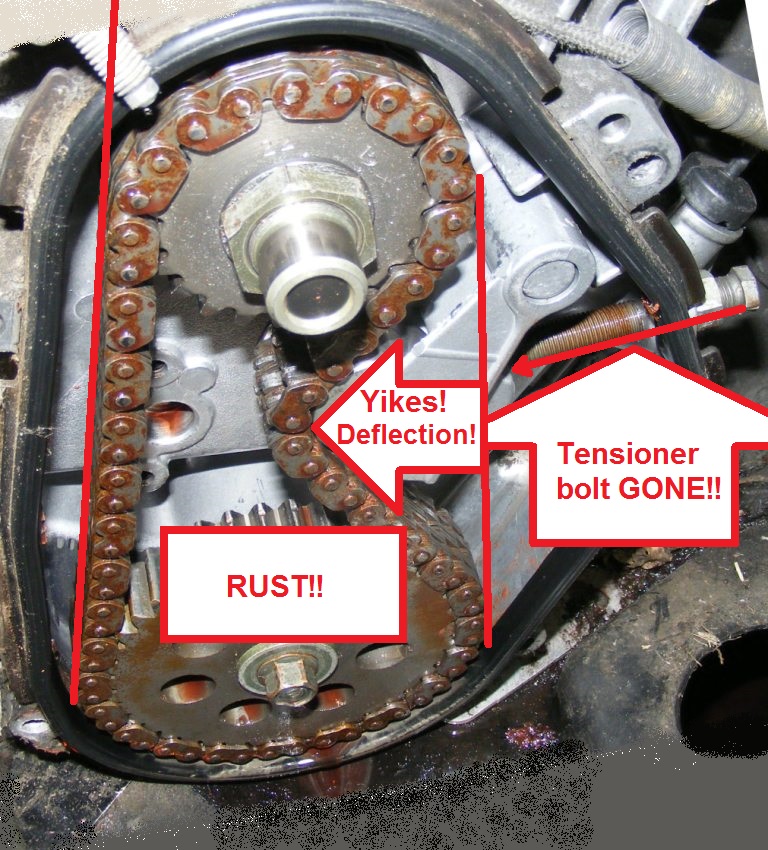

When the chain tensioner bolt is
turned this far in you can only imagine one of two
things:
- The chain is stretched beyond belief,
- or the sprockets have been swapped out and "long
of chain" has been used.
|
|
|
